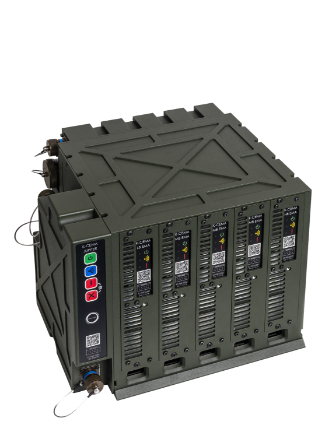

Jupiter Vehicle Mounted System

The vehicle mounted K-CEMA Jupiter allows users to conduct cyber and electromagnetic activities anywhere in the ElectroMagnetic Environment (EME) between – High Frequency and Super High Frequency (initially 20 MHz to 6 GHz)

Jupiter Vehicle Mounted System

Key Features

  • Hybrid jamming against RCIED and UAS threats
  • Compatible with GVA, Open CPI, and JCID4.2
  • 450 Watts output power

Quick Specs

  • Dimensions: 330mm x 300mm x 250mm
  • Weight: 28.7 Kg
  • Operating Frequency: 20 MHz to 6 GHz, expandable to include High Frequency & Super High Frequency
  • Operating temperature range: as standard: -20°C to +60°C

OPTIONS AND ACCESSORIES

The following accessories are compatable with K-CEMA Jupiter Vehicle Mounted

Remote Control Unit

The Mercury Remote Control Unit (RCU) is designed to provide equipment status and easy operation of the system from the crew compartment of the vehicle

Confidence Test

The CTS allows maintainers and users to ensure the correct RF output is being transmitted by the Mercury system prior to deploying on a mission.

Fill Gun

The Fill Gun Device (FGD) is a robust device designed to allow maintainers to upload mission fills to Mercury systems.

Xchange

XCHANGE allows users to simultaneously communicate through inhibition through the addition of a plug in patch

IRFS

The Integrated Radio Frequency System (IRFS) provides the user with the ability to assess the effectiveness of the Mercury system against live RF transmitters or to enhance training.
